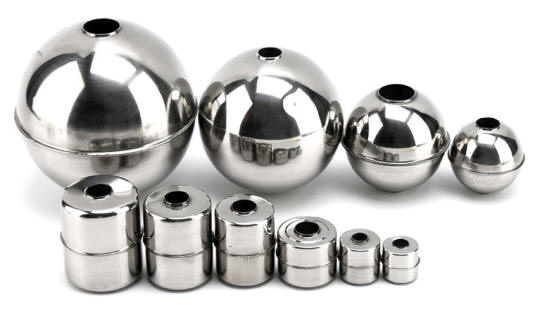

Core characteristics of stainless steel floating ball
1 Strong corrosion resistance: Made of 304 and above grade stainless steel, it can effectively resist the erosion of water, weak acids, alkalis, and some chemical media, and is suitable for various complex working conditions.
2
High reliability: With a simple structure and no complex electronic components, it relies on the magnetic coupling between the magnetic float and reed switch to trigger the switch action, resulting in a long working life and low failure rate.
3
Wide applicability:
Can be used for liquid level control of clean water, sewage, oil, and medium concentration acid-base liquids;
Supports a working temperature range of -10 ℃~150 ℃ (depending on the material), with some models reaching up to 200 ℃;
The pressure level covers atmospheric pressure up to 4.0MPa, meeting the requirements of different systems.
4
Flexible installation: Supports multiple installation methods such as top mounted and side mounted, adapting to different container structures such as water tanks, storage tanks, and sedimentation tanks.
Common types and application scenarios

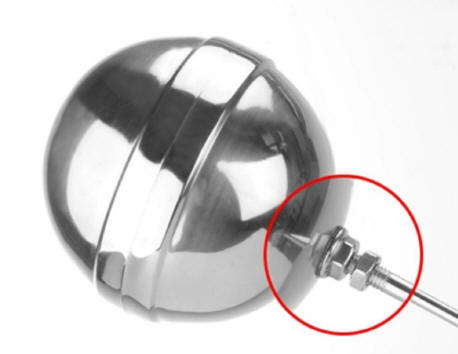

Connecting rod stainless steel float switch: By moving the float up and down along the guide rod, it drives the internal magnet to trigger the magnetic spring switch, achieving liquid level alarm or pump start stop control. It is commonly used in industrial sewage pumps and water tower automatic water supply systems.
Side mounted stainless steel float switch: compact structure, easy to maintain externally, widely used for municipal drainage and chemical equipment liquid level monitoring.
Floating ball valve integrated device: such as stainless steel flange floating ball valve, combining valve and floating ball functions to achieve automatic water level adjustment, commonly used in scenarios such as rice steaming cabinets, water boilers, and high-rise water tanks.
